Military Program

This is the area where quiet operation, compact dimensions and high efficiency are most needed. Fischer Panda produces special types of generators for a wide range of activities in the military program.

Command and control unit
Communications
Tactical headquarters

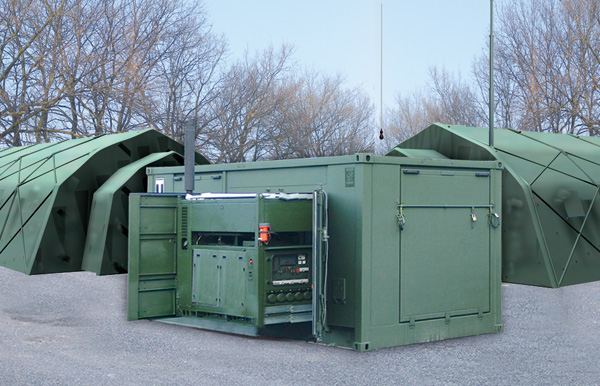

Mobile generators installed on towing vehicles for various purposes

Fischer Panda military generators are EMC standardized according to MIL-STD 461E and are difficult to detect by infrared devices due to effective isolation. The generators are housed in super-quiet special sound enclosures which ensure that the Panda diesel APU operates with a very low noise level. For more detailed information about our range of military generators, send an inquiry to: info@indelmarine.hr.

The perfect pure sine interval required for the most sophisticated electronics
The stator windings are water-cooled for maximum efficiency
Specially designed housing insulation
No hot, humid dirty air inside the case
Low noise level: 58 dbA at 7 meters(*)
Weight and size savings
They have no brushes or rotary diodes
Water-cooled system for engine and generator part
Lifetime rotor warranty, no replacement parts
EMC license according to the MIL-STD 461E standard
Shock & vibration approval according to MIL-STD 810
Metal soundproof capsule
Asynchronous Design
Protection against environmental influences
Reliability
Design flexibility

Air cooled DC generators
28V / 2 kW – 4.5 kW

Water cooled DC generators
28V / 4 kW – 10 kW

Water-cooled AC generators 50 / 60 Hz
4 kW – 55 kW

230V / 50Hz Single-phase
120 / 240V 60Hz Single phase

230V / 400V 50Hz Three-phase
120V / 208V 60Hz Three-phase
240V / 416V 60Hz Three-phase

Water-cooled AC generators 400 Hz
120V / 208V / 400 Hz
240V / 416V / 400 Hz
120V / 208V / 400 Hz

Combined Generator / Aircons (Combi)
6 / 10 / 12 V
10 kW electric + 22,000 BTU Aircon
28 V DC + Aircon

Fischer Panda CAPS – Combining air conditioning and a 25kW power generator system and ECU as a complete system
